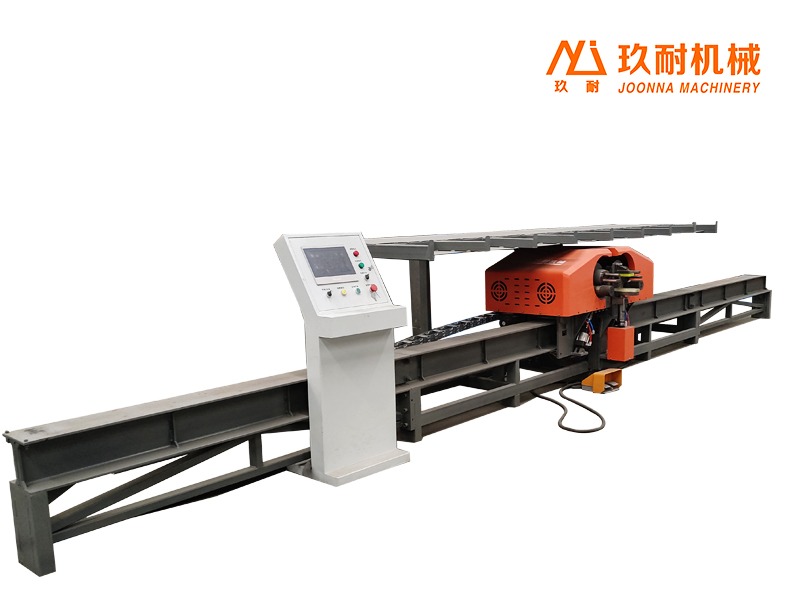

G2LW25 vertical intelligent steel bar bending center

The G2LW25 Intelligent Steel Bar Bending Center is a CNC-controlled, fully automated bending machine designed for reinforced concrete structures in high-rise buildings, highways, high-speed railways, and large bridges. Capable of processing Grade III rebar (HRB400) with a maximum diameter of φ22mm, this equipment performs both forward and reverse bending operations within a single work cycle. As an independently developed high-tech product with proprietary intellectual property rights, our company’s products are tailored to meet market demands and customer needs. Featuring CNC technology, it delivers high precision and efficiency to satisfy diverse engineering requirements. Each shift can replace 8-10 operators compared to conventional bending machines, offering exceptional cost-effectiveness while delivering significant efficiency and benefits to clients.

Category: Intelligent bar processing equipment

Description
Reviews (0)

Technical parameter ：

product model		G2LW25
Equipment size (mm)	800013001200	angle error （°）	±1
Barometric pressure	0.4-0.6Mpa	Head lock	pneuma-lock
source	380v-50hz	Method of setting the size	Automatic measuring
Overall power (kw)	15.5	Bending steel bar diameter (HRB335)	6/8/10/12/14/16/18/20/22/25
Formation speed (s)	5	Number of bends (roots)	10/8/6/5/3/2/1/1/1/1
Weight of the machine (kg)	1800

Equipment advantages:

The curved panel is specially designed to have a long service life.
Mobile bending machine, the bending length is free to determine the size.
Integrated design, high strength mobile track design, durable.
Design of bending machine positioning and clamping mechanism to improve bending accuracy.
The telescopic bending pin shaft realizes the two-way bending of the steel bar.
High strength material rack, carrying more raw materials.
The equipment has high performance, and can bend multiple steel bars at one time, and can bend multiple angles without moving.
Large graph database can preset dozens of graphics for easy retrieval;
High performance PLC combined with touch screen control interface is easy to operate;
