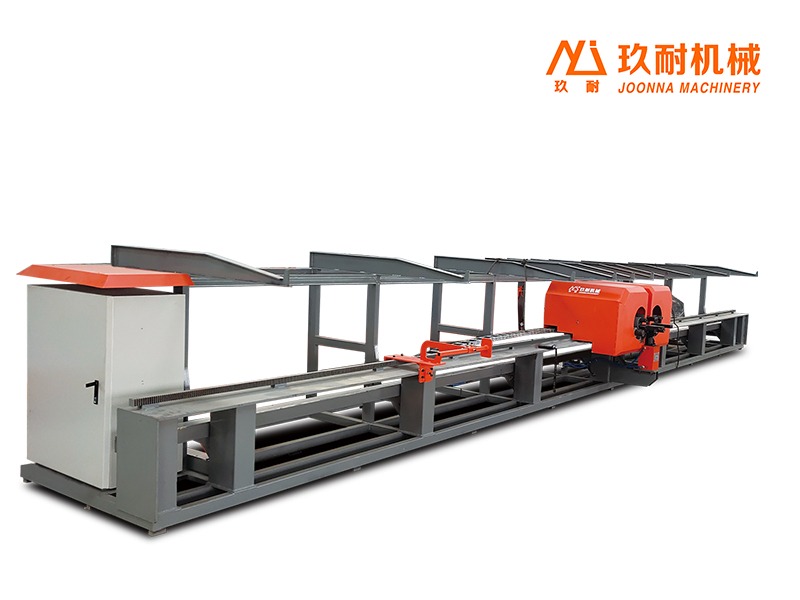

G2LW32A vertical intelligent steel bar bending center

The G2LW32A Intelligent Steel Bar Bending Center is a CNC-controlled, fully automated bending machine designed for reinforced concrete structures in high-rise buildings, highways, high-speed railways, and large bridges. Capable of processing Grade III rebar (HRB400) with a maximum diameter of φ28mm, this equipment performs both forward and reverse bending operations within a single work cycle. As an independently developed high-tech product with proprietary intellectual property rights, our company strives to meet market demands through precision engineering solutions. The CNC technology ensures high processing accuracy and efficiency, fulfilling diverse project requirements. Each shift can replace 8-10 operators compared to conventional bending machines, delivering exceptional cost-effectiveness while enhancing operational efficiency and profitability for clients.

Category: Intelligent bar processing equipment

Description
Reviews (0)

Technical parameter ：

product model		G2LW32A
Bending speed (r.p.m)	0-9	Minimum bending bar length (mm)	700
Mobile speed of bending machine (m/s)	0.5-1	Bend in both directions (up or down)	Φ10-25
source	350v-50hz	Unidirectional bending (upward bending)	Φ10-28
aggregate capacity （kw）	20	Bending steel bar diameter (HRB335)	10/12/14/16/18/20/22/25/28
Actual power consumption (kw/h)	4	Number of bends (roots)	6/5/4/3/2/2/2/1/1
Maximum bending Angle (°)	Upwardly curved 0~+180 Bend downward 0-120	Speed adjustment mode	CNC servo control, stepless adjustable
Minimum length of bending edge (mm)	80	Equipment size (mm)	1205021001500

Equipment advantages:

The curved panel is specially designed to have a long service life.
Mobile bending machine, the bending length is free to determine the size.
Integrated design, high strength mobile track design, durable.
Design of bending machine positioning and clamping mechanism to improve bending accuracy.
The telescopic bending pin shaft realizes the two-way bending of the steel bar.
High strength material rack, carrying more raw materials.
The equipment has high performance, and can bend multiple steel bars at one time, and can bend multiple angles without moving.
Large graph database can preset dozens of graphics for easy retrieval;
High performance PLC combined with touch screen control interface is easy to operate;
The design of the central flexible steel bar locking mechanism ensures the bending accuracy.
High production efficiency, the average processing capacity of 2 people (8 hours) per shift is more than 10 tons, which is more than 5 times of the output of traditional processing equipment.
The equipment has good adaptability and can process grade 3 rebar (HRB400) with diameter of 10-32.
