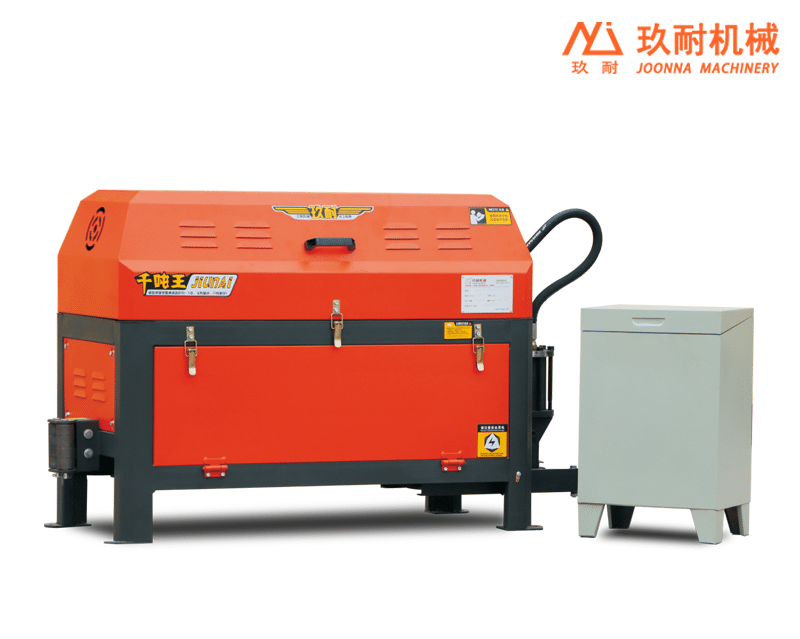

GT4-12A steel bar straightening and cutting machine

The GT4-12A machine boasts high automation and rapid traction speed, operating in continuous mode with an automatic counting shutdown system for enhanced safety. After straightening, the wire surface remains virtually scratch-free with minimal strength loss and excellent straightness. It features user-friendly operation, convenient adjustments, simple material cutting, and high production efficiency. Renowned for its speed, practicality, and reliability, this equipment has earned trust from domestic and international clients. Combining premium quality with competitive pricing, it stands as an indispensable automated rebar processing system for any rebar processing center or prefabrication plant.

Technical parameter :

 product model GT4-12A
Range of ordinary carbon steel adjustment (mm) Φ4-12
Rectification range of grade ⅲ rebar (mm) Φ4-10
 cut lengths (mm) ≥10
 hauling speed (mm) 40
Cutting error (mm) ±10
Wire straightening degree (mm) ±2
 aggregate capacity (KW) 9
 voltage (V) 380v (customizable according to different countries)
 size (mm) 1350*570*900

Integrated casting machine housing

National standard motor with large inertia flywheel Strong and powerful

High precision forged gear The noise is small

Special design arc blade Cut more smoothly
