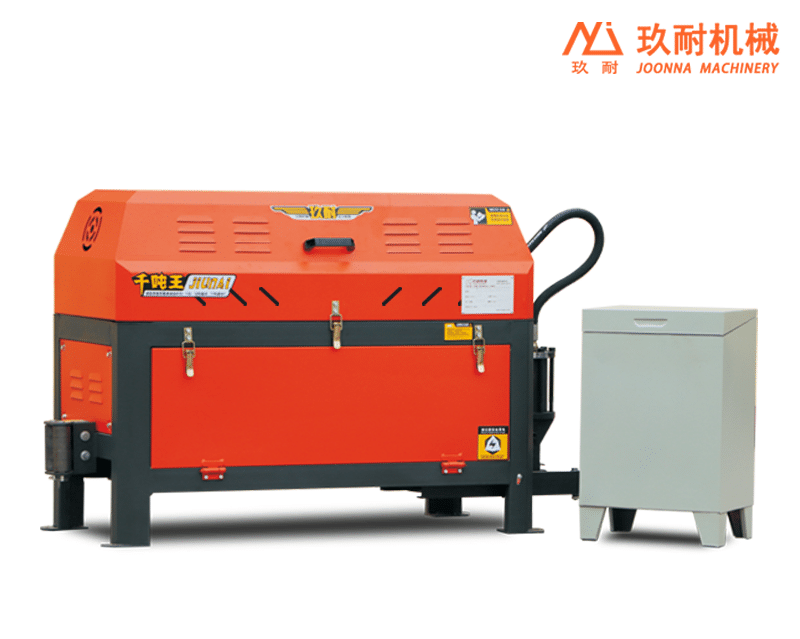

GT4-12D steel bar straightening and cutting machine

The GT-4-12D machine boasts high automation and rapid traction speed, operating in continuous mode with an automatic counting and stopping system for enhanced safety. After straightening by this equipment, the wire surface remains virtually scratch-free with minimal strength loss and excellent straightness. It also features user-friendly operation, convenient adjustments, simple material cutting, and high production efficiency. Renowned for its fast operation, practicality, and reliability, this equipment has gained widespread trust and popularity among domestic and international clients. Combining high quality with competitive pricing, it serves as an indispensable automated rebar processing system for any rebar processing center or prefabrication plant

Technical parameter :

 product model GT4-12D
Range of ordinary carbon steel adjustment (mm) Φ4-12
Rectification range of grade ⅲ rebar (mm) Φ4-10
 cut lengths (mm) ≥10
Traction speed (m/min) 55
Cutting error (mm) ±10
Wire straightening degree (mm) ±2
 aggregate capacity (kw) 9
 voltage (v) 380v (customizable according to different countries)
 size (mm) 1600*600*900

simple in structure Stable and reliable Can be used in a variety of working conditions It is easy to replace fragile parts

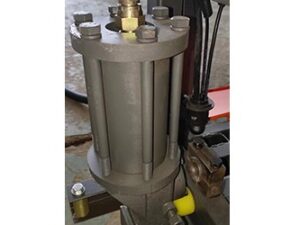

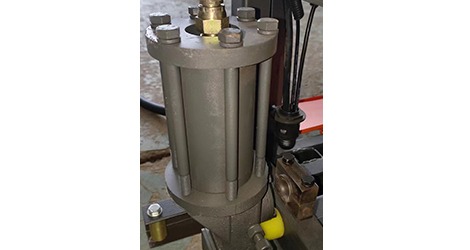

High speed high pressure hydraulic system Cutting speed is faster High precision

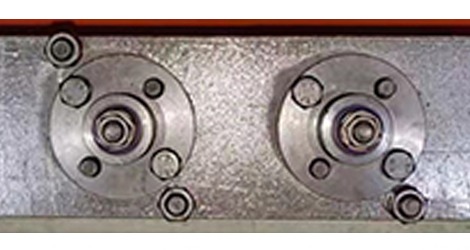

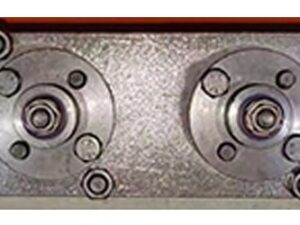

Adjust the frame adjustment wire dustproof design  wear well

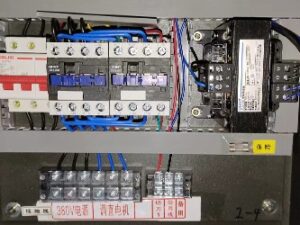

Choose branded appliances Quality assured
