GT4-14E-2 steel bar straightening machine

The GT4-14E-2 machine boasts high automation and rapid traction speed, operating in continuous mode with an automatic counting shutdown system for enhanced safety. After straightening by this equipment, the wire surface remains virtually scratch-free with minimal strength loss and excellent straightness. It also features user-friendly operation, convenient adjustments, simple material cutting, and high production efficiency. Renowned for its speed, practicality, and reliability, this equipment has earned trust from domestic and international clients. Combining premium quality with competitive pricing, it stands as an indispensable automated rebar processing system for any rebar processing center or prefabrication plant.

Technical parameter :

 product model GT4-14E-2
Range of ordinary carbon steel adjustment (mm) Φ4-12
Rectification range of grade ⅲ rebar (mm) Φ4-10
 cut lengths (mm) ≥10
Traction speed (m/mim) 0-75
Cutting error (mm) ±10
Wire straightening degree (mm) ±2
 aggregate capacity (kw) 13.5
 voltage (v) 380v (customizable according to different countries)

simple in structure Can be used in a variety of working conditions

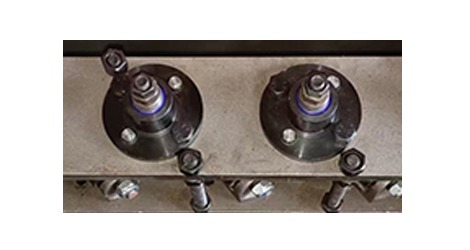

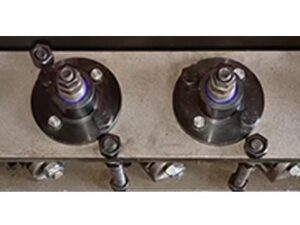

Three rounds of structural adjustment

High speed high pressure hydraulic system

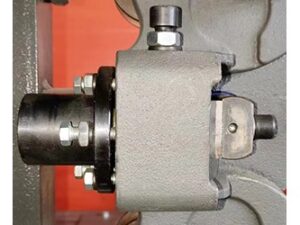

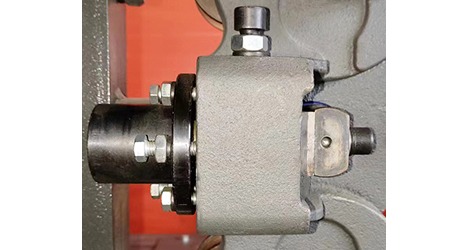

Adjust the frame adjustment wire Dust-proof design
