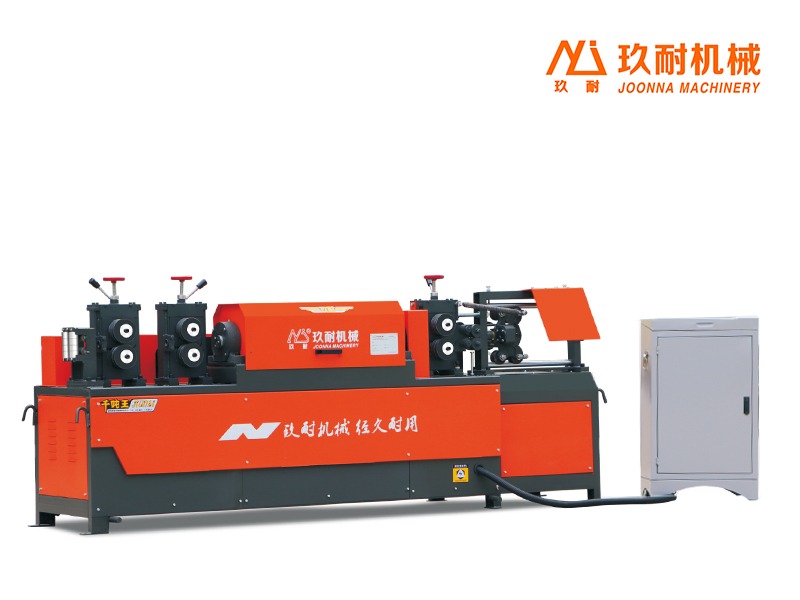

GT4-16A-2 steel bar straightening machine

The GT4-16A-2 Straightening Machine for Steel Bars is specifically designed for construction-grade hot-rolled ribbed bars, cold-rolled ribbed bars, smooth round bars, and prestressed steel bars. It also accommodates straightening of aluminum, copper, stainless steel, and other wire materials. Featuring advanced automation, this equipment employs electronic length measurement technology that automatically cuts to preset lengths and stops at designated quantities, while supporting multi-batch continuous operation. With its fast processing speed, practical design, and reliable performance, it has earned widespread trust from domestic and international clients. Combining premium quality with competitive pricing, this machine serves as an indispensable automated steel bar processing solution for any steel bar processing center, prefabrication plant, or construction site requiring reinforced steel components.

Technical parameter :

 product model GT4-16A-2
Range of ordinary carbon steel adjustment (mm) Φ4-16
Rectification range of grade ⅲ rebar (mm) Φ4-14
 cut lengths (mm) ≥10
Traction speed (m/min) ≤95
Cutting error (mm) ±10
Wire straightening degree (mm) ±2
 aggregate capacity (kw) 15.5
 voltage (v) 380v (customizable according to different countries)
 outline dimension (mm) 2970*750*1250

III. Traction The power increases faster

High speed high pressure hydraulic system Cutting speed is faster

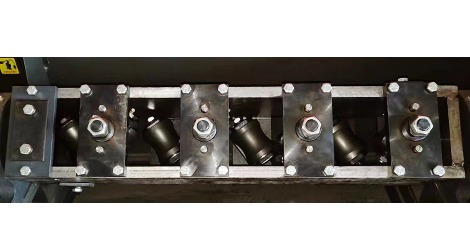

Big eight wheel structure Increase the weight of special steel straightening wheel

building block design The service life of the equipment is longer Simple and easy maintenance
