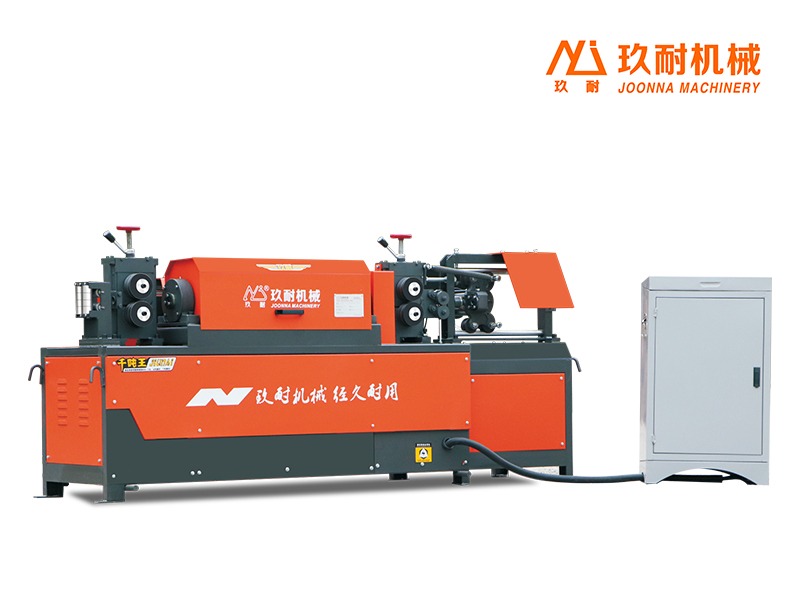

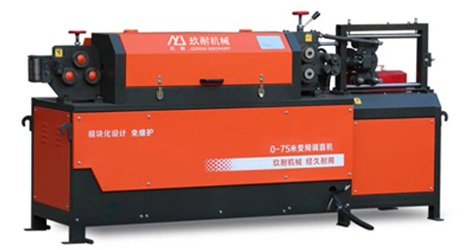

GT4-16D steel bar straightening machine

The GT4-16D Straightening Machine is designed for construction-grade hot-rolled ribbed steel bars, cold-rolled ribbed steel bars, smooth round steel bars, and prestressed steel bars. It also straightens aluminum, copper, stainless steel, and other wire materials. Featuring advanced automation with electronic length measurement, this equipment automatically cuts to preset lengths and stops at set quantities, while supporting multi-batch continuous operation. Known for its fast speed, practicality, and reliability, it has earned widespread trust from domestic and international clients. Combining high quality with competitive pricing, this machine serves as an indispensable automated steel bar processing solution for any steel bar processing center, prefabrication plant, or building construction industry.

Technical parameter :

 product model GT4-16D
Range of ordinary carbon steel adjustment (mm) Φ4-14
Rectification range of grade ⅲ rebar (mm) Φ4-12
 cut lengths (mm) ≥10
Traction speed (m/min) ≤85
Cutting error (mm) ±10
Wire straightening degree (mm) ±2
 aggregate capacity (kw) 15.5
 voltage (v) 380v (customizable according to different countries)
 size (mm) 2800*750*1250

simple in structure Reliability and stability Can be used in a variety of working conditions Replacement of fragile parts is very easy

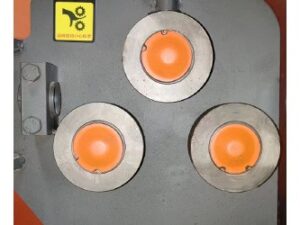

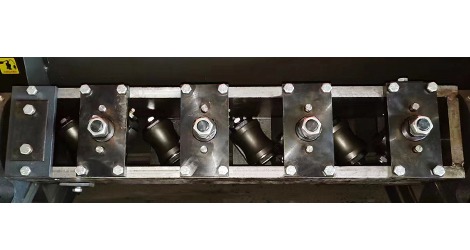

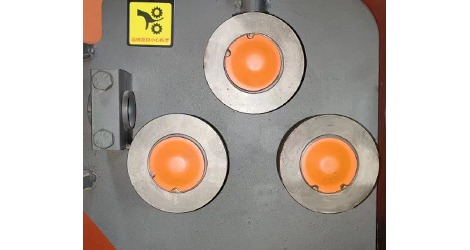

Big eight wheel structure Increase the weight of special steel straightening wheel Enhanced durability

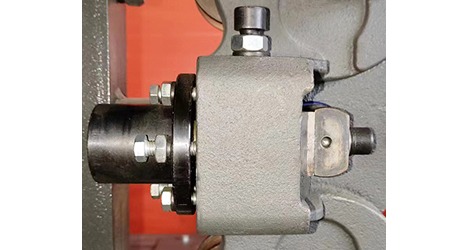

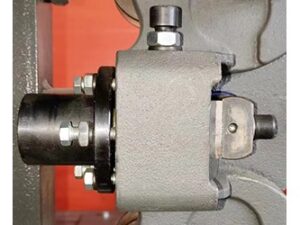

High speed high pressure hydraulic system Cutting speed is faster High precision

building block design The service life of the equipment is longer Easy and quick maintenance
