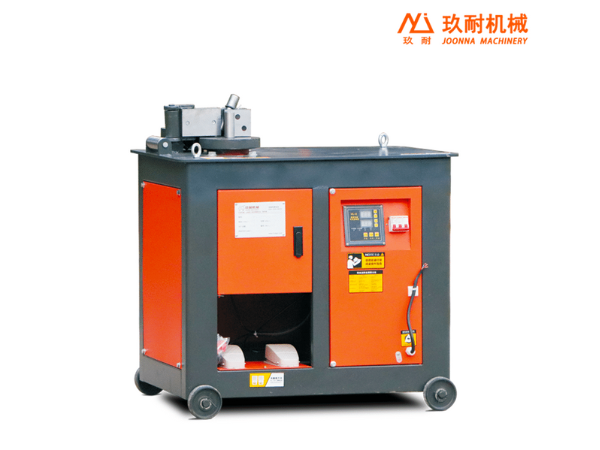

GW25 CNC bending machine

The GW25 CNC Steel Stirrup Bending Machine is a fully automated production system featuring bidirectional bending capabilities. Designed for processing cold-rolled and hot-rolled high-strength wire rods, this equipment integrates four core functions: straightening, precision measurement, bidirectional bending, and shearing. It delivers one-step processing of wire rods into standardized products including fixed-length bars, single-head bends, and both open-ended and closed-end stirrup configurations. Renowned for its rapid operation, practicality, and reliability, this machine has earned widespread trust from domestic and international clients. Combining premium quality with competitive pricing, it stands as an indispensable automated steel processing solution for any fabrication center or prefabrication plant.

Category:

Technical parameter :

 product model GW25
Bending range of ordinary carbon steel (mm) <Φ25
Grade ⅲ rebar bending range (mm) <Φ22
Diameter of disc (mm) 250
Bending speed (n/min) 28
 power of motor (kw) 3
 voltage (v) 380v (customizable according to different countries)
 size (mm) 850*550*880

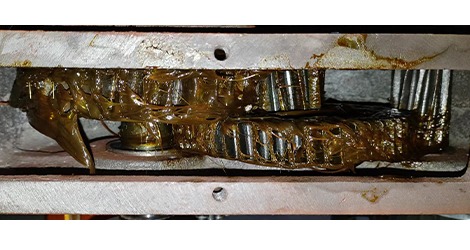

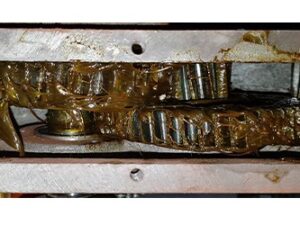

Forged alloy gear Can withstand large torque and heavy load Precision machining is quiet

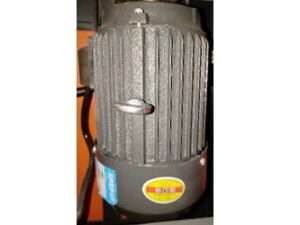

National standard motor Branded electrical appliances

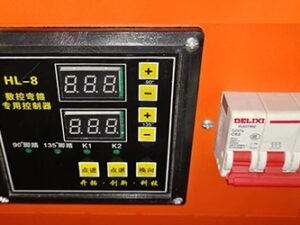

CNC control box with high precision Angle encoder The Angle is more accurate at high speeds
