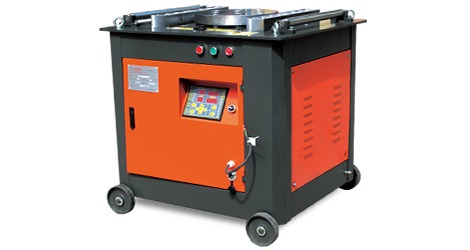

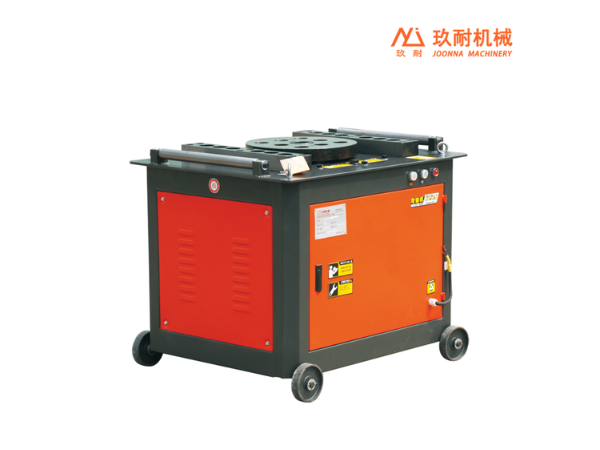

The GW50A Steel Bar Bending Machine is a versatile industrial solution for bending carbon steel, hot-rolled round bars, and threaded bars in reinforced concrete structures. Designed for mass production of steel bars under 40mm diameter, it processes both cold-rolled and hot-rolled high-strength wire rods. Equipped with straightening, measuring, bidirectional bending, and shearing functions, this machine achieves one-step processing into standardized products including fixed-length bars, single-head bends, and closed-loop (spandrel) configurations. Renowned for its speed, practicality, and reliability, the equipment has gained widespread trust among domestic and international clients. Combining premium quality with competitive pricing, it stands as an indispensable automated processing system for steel bar fabrication centers and prefabrication plants worldwide.
Technical parameter ：
| product model | GW50A |
| Bending range of ordinary carbon steel (mm) | ＜Φ50 |
| Grade ⅲ rebar bending range (mm) | ＜Φ36 |
| Diameter of disc (mm) | 380 |
| Bending speed (n/min) | 5-10 |
| power of motor （kw） | 4 |
| voltage （v） | 380v (customizable according to different countries) |
| size （mm） | 950*750*850 |

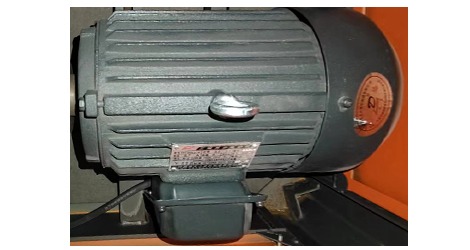

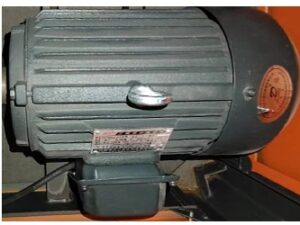

Branded electrical appliances National standard motor

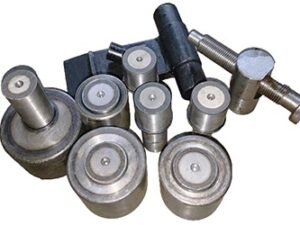

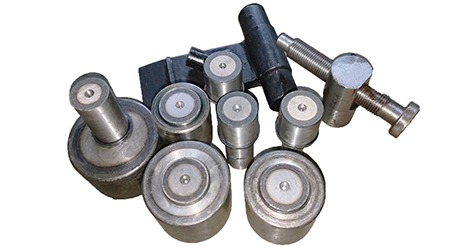

Alloy steel pin wear well
High strength body wear well
