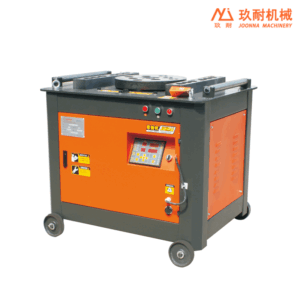

The GW50C CNC Steel Bar Bending Machine is designed for mass production of steel bars under 40mm. Featuring automated control with batch input and angle adjustment via computer interface, this equipment processes cold-rolled and hot-rolled high-strength wire rods. It integrates functions including straightening, measurement, bidirectional bending, and shearing, enabling one-step processing into standardized specifications such as fixed-length bars, single-head bends, and both open and closed (spandrel) configurations. Renowned for its speed, practicality, and reliability, this machine has gained widespread trust among domestic and international clients. Combining premium quality with competitive pricing, it stands as an indispensable automated steel processing solution for any fabrication center or prefabrication plant.
Technical parameter ：
| product model | GW50C |
| Bending range of ordinary carbon steel (mm) | ＜Φ50 |
| Grade ⅲ rebar bending range (mm) | ＜Φ36 |
| Diameter of disc (mm) | 380 |
| Bending speed (n/min) | 5-10 |
| power of motor （kw） | 4 |
| voltage （v） | 380v (customizable according to different countries) |
| size （mm） | 950*750*850 |
Branded electrical appliances National standard motor
High strength body wear well
Numerical control The Angle is more precise Operation is more convenient
Alloy steel pin wear well
