Fully Automatic CNC Steel Bar Bending Machine System
The fully automatic CNC steel bar bending machine represents the most advanced solution for modern reinforcement processing in the construction industry. Designed with cutting-edge digital control technology, it delivers precision, efficiency, and reliability that far surpass traditional stirrup-making methods.
At the heart of the system is a dual straightening unit composed of two sets of horizontal and vertical automatically adjustable straightening wheels. These work in combination with four high-strength traction wheels, all powered by imported servo motors. This configuration ensures that steel bars are straightened with maximum accuracy, eliminating defects caused by human error or mechanical inconsistencies. The servo-driven design guarantees smooth feeding and high stability, even during continuous operation, allowing the machine to maintain tight tolerances in high-volume production.
Advanced Bending Mechanism

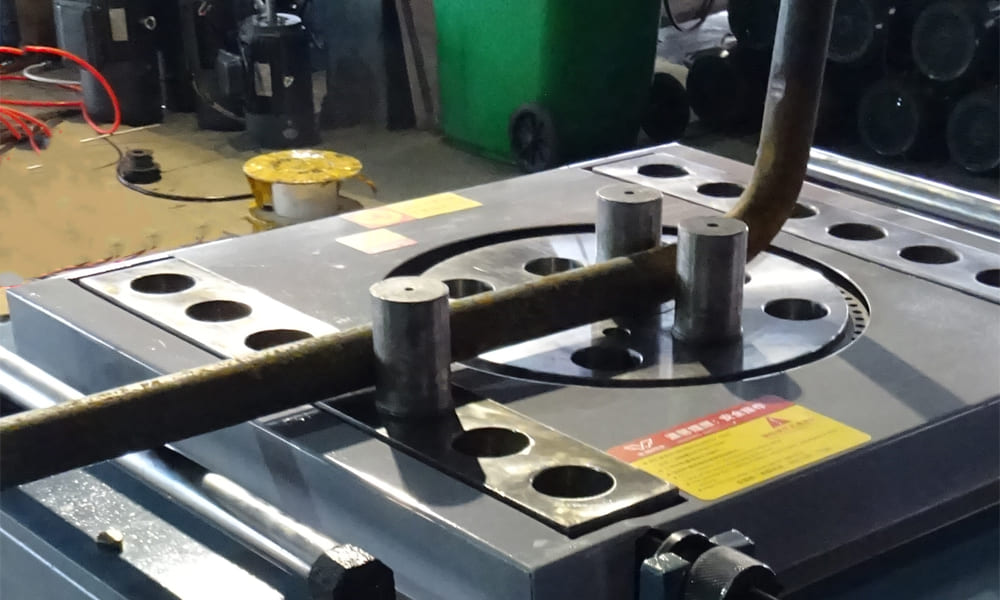

The bending unit is another key highlight of the machine. Equipped with a high-speed imported motor, the bending arm is capable of rapid rotation and precise angle adjustments. This ensures that each bar is bent exactly to specification, regardless of complexity. Whether producing simple stirrups or intricate reinforcement profiles, the bending mechanism achieves consistent results with minimal deviation. Unlike traditional bending processes that require manual repositioning and recalibration, the CNC system automatically adjusts in real time, making it possible to correct angles and execute multiple bends seamlessly without halting production.
Intelligent Control System
A mature and highly reliable foreign control system powers the machine, integrating intelligent fault detection and alarm functions. This ensures operators are immediately notified of abnormalities, minimizing downtime and protecting the integrity of production. The user-friendly interface allows operators to quickly design, store, and retrieve multiple stirrup and profile shapes. Up to 14 bends can be performed in a single design, making the machine capable of producing a wide range of customized reinforcement elements. Stored programs enable mass production of multiple product varieties without mechanical adjustments, which greatly improves efficiency in dynamic construction projects where demand changes frequently.
Superior Performance Compared to Traditional Methods
Conventional stirrup production typically requires several machines in sequence, beginning with unwinding and conditioning of coiled bars, followed by cutting, bending, and manual adjustments. This process is not only time-consuming but also labor-intensive, requiring multiple skilled workers to oversee operations. Furthermore, traditional techniques often lead to substantial material wastage, high labor costs, and reduced dimensional accuracy, ultimately increasing project expenses and timelines.
In contrast, the CNC steel bar bending machine integrates all these steps into a single automated process. Straightening, sizing, bending, and cutting are executed seamlessly under digital control. The efficiency gains are remarkable: one CNC machine can effectively replace the output of 5 to 10 steel workers. This translates directly into lower labor costs, reduced steel waste, faster processing speeds, and improved consistency in stirrup dimensions and shapes. Additionally, the compact footprint of the machine helps save valuable workshop space while enabling higher throughput.
Applications and Benefits
This system is particularly suitable for large-scale construction projects, prefabrication plants, and infrastructure works where efficiency and accuracy are critical. By automating the reinforcement preparation process, project managers can achieve faster progress on-site, maintain strict quality control standards, and ensure compliance with modern building codes. The high versatility of the CNC stirrup bending machine allows it to adapt to diverse project requirements, from residential housing to bridges and industrial facilities.
Conclusion
The fully automatic CNC steel bar bending machine system is more than just an equipment upgrade—it is a complete transformation of the reinforcement processing workflow. By leveraging servo-driven straightening technology, high-speed bending, and intelligent digital controls, it overcomes the limitations of traditional stirrup production methods. The result is a powerful solution that reduces costs, minimizes waste, enhances productivity, and delivers unmatched precision. For construction companies aiming to stay competitive in today’s fast-paced industry, investing in CNC steel bar bending technology is not only a smart choice but a necessary step forward.
