Technical parameter ：

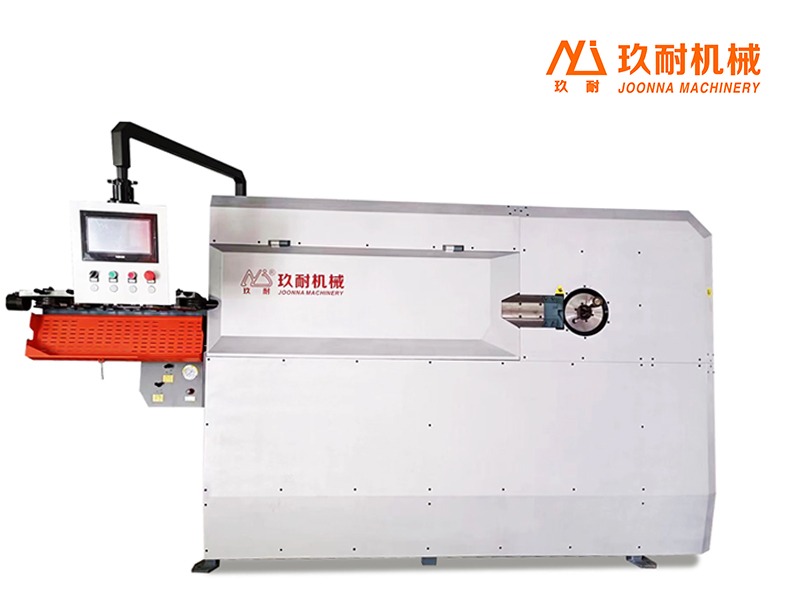

| product model | SWG14J | ||
| Ordinary carbon steel single wire processing range (mm) | Φ5-14 | Bending direction | two-way |
| Grade ⅲ threaded steel single wire processing range (mm) | Φ5-12 | Length accuracy (mm) | ±1 |
| Double wire processing range of ordinary carbon steel (mm) | Φ5-12 | Angle precision (°) | ±1 |
| Grade ⅲ rebar double line processing range (mm) | Φ5-10 | aggregate capacity （kw） | 15+5.5+4.5+7.5 |
| Maximum bending Angle (°) | 180 | Host exterior dimensions (mm) | 3650*850*1950 |
| Maximum feed speed (mm/s) | 1200 | working temperature （℃） | -5-40 |
| Maximum bending speed (°/s) | 1000 | Airway pressure (MAP) |
|
Friction feeding mechanism No slipping, no injury to the ribs
Adopt CNC servo control system Achieve full automatio Continuous bending and forming process
Rebar straightening, sizing, bending and cutting The functions are perfectly combined At the same time, it meets the precision requirements of steel processing Realize one machine for multiple purposes
Disk bending mechanism The collision of the hoop reinforcement is avoided The pass rate
Improved service life The four sides are designed with a movable knife Service life increased by 4 times Great cost reduction
