product model	WJT-18	WJT-22
power of motor	8kw	8kw
source	380V	380V
air supply	0.5-0.8max	0.5-0.8max
Weight of the machine	1300kg	1300kg
Diameter of bendable steel bar	4-18mm	4-22mm
Minimum bend size	110x150mm (inner size)	110x150mm (inner size)
Bending and forming speed	4.5-10 seconds (adjustable)	4.5-10 seconds (adjustable)
Hydraulic pressure	5-16MPa	5-16MPa
Bent steel bar diameter HBR335 (mm)	10/12/14/16/18	12/14/16/18/20
Number of bends (roots)	7/6/3/1/1	6/3/2/1/1

Reviews

There are no reviews yet.

Be the first to review “WJT Intelligent five-head hoop bender”

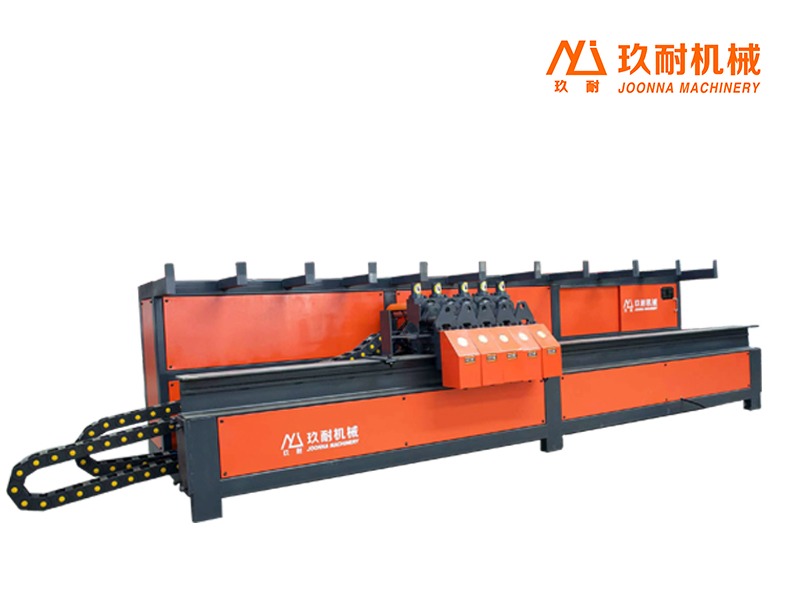

WJT Intelligent five-head hoop bender
